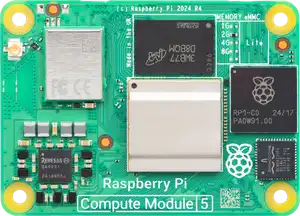

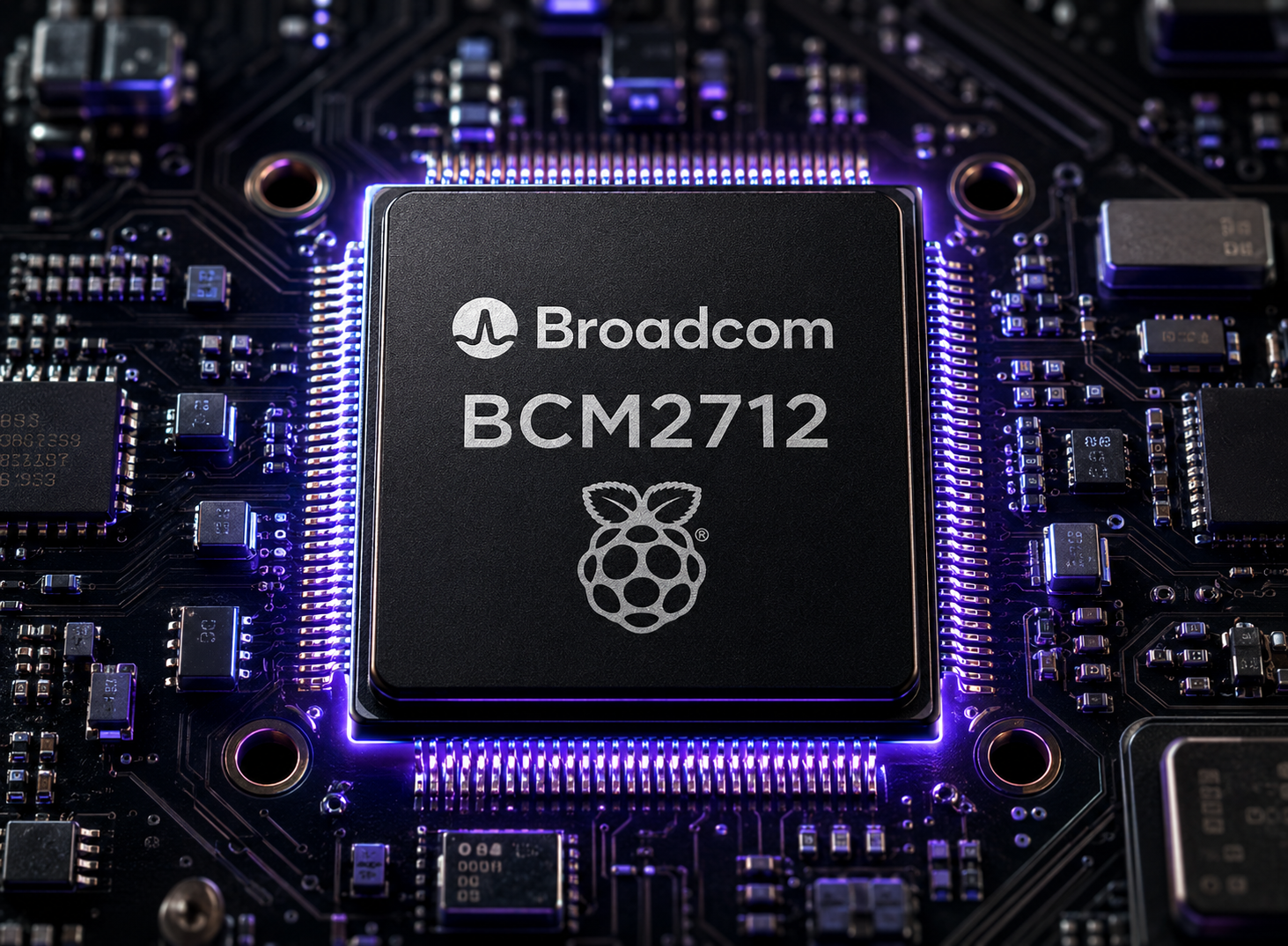

Raspberry Pi CM5
Broadcom BCM2712

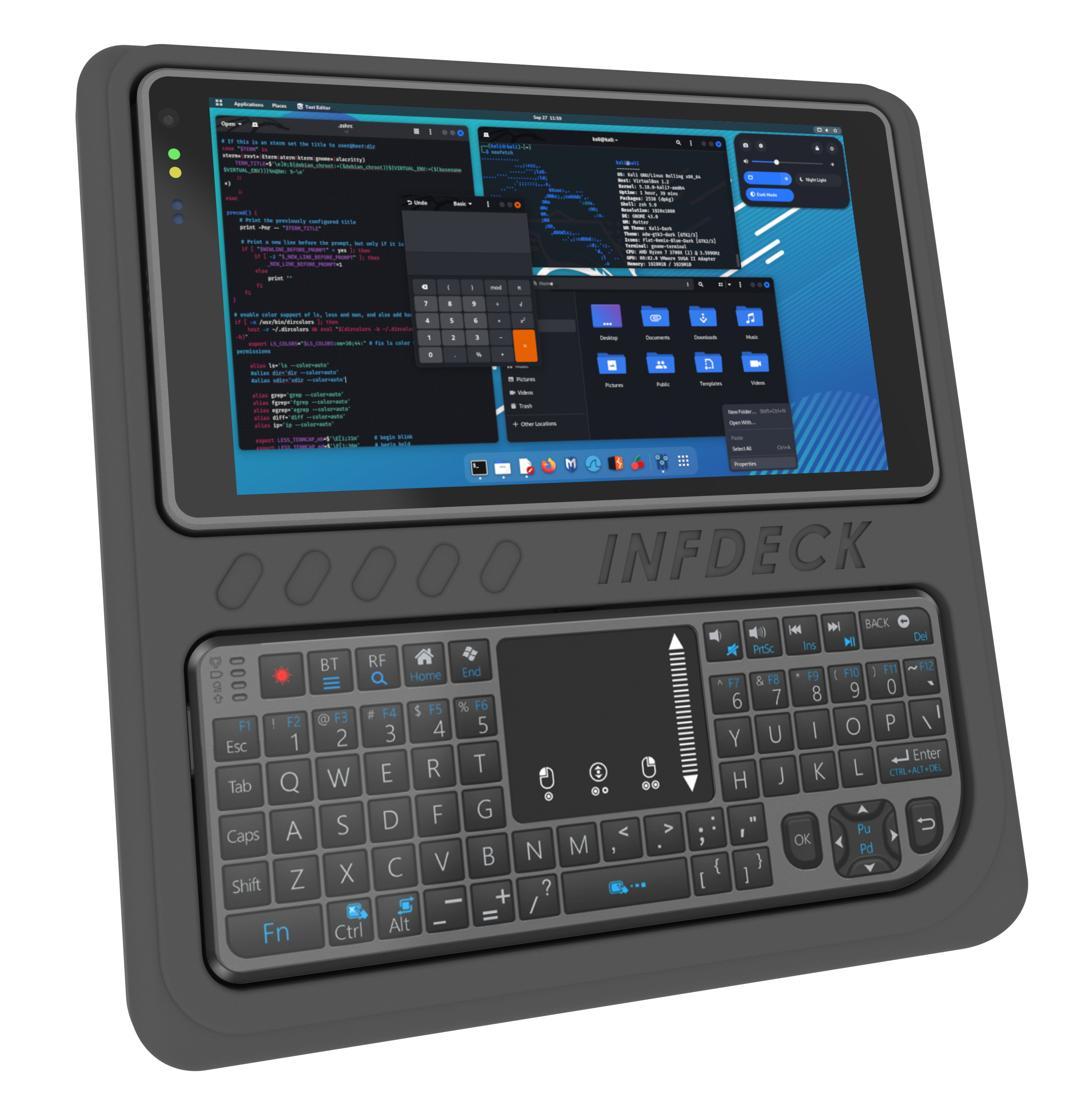

PhonePi is an open, portable Linux computer built for people who create, explore, and refuse closed systems.
video
demonstrating PhonePi as a portable Linux computer.
03 — MODULAR COMPUTE
one device.
your choice of compute.
PhonePi is designed around a replaceable compute-module architecture. Choose the processor platform that fits your project, then upgrade or replace the module without replacing the entire device.

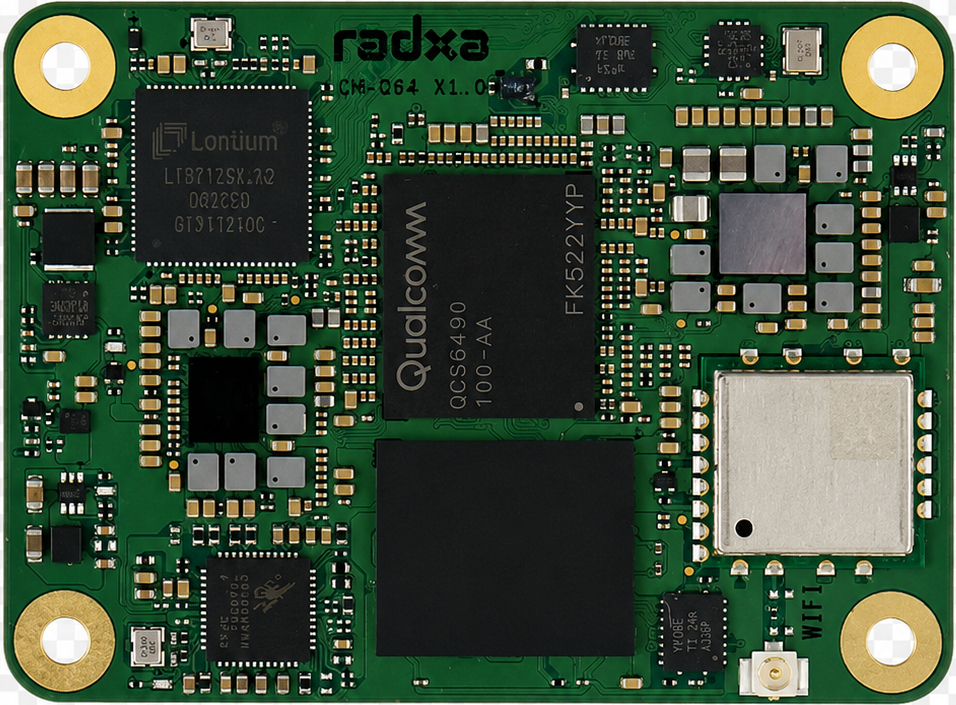

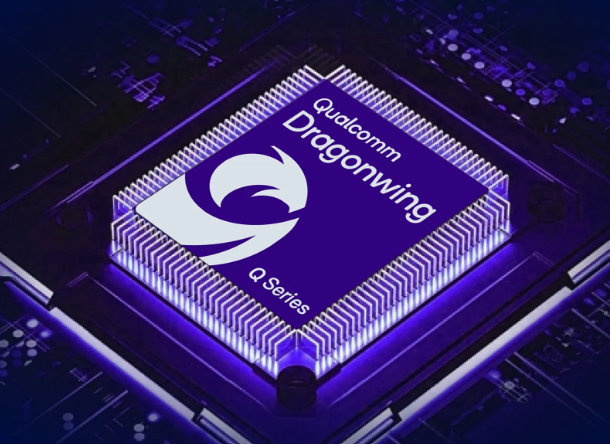

Radxa CM-Q64
Qualcomm QCS6490

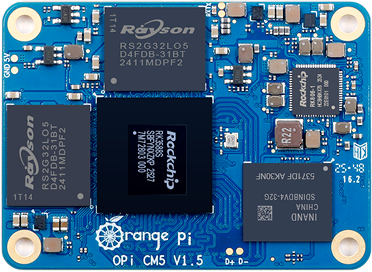

Orange Pi CM5
Rockchip RK3588s

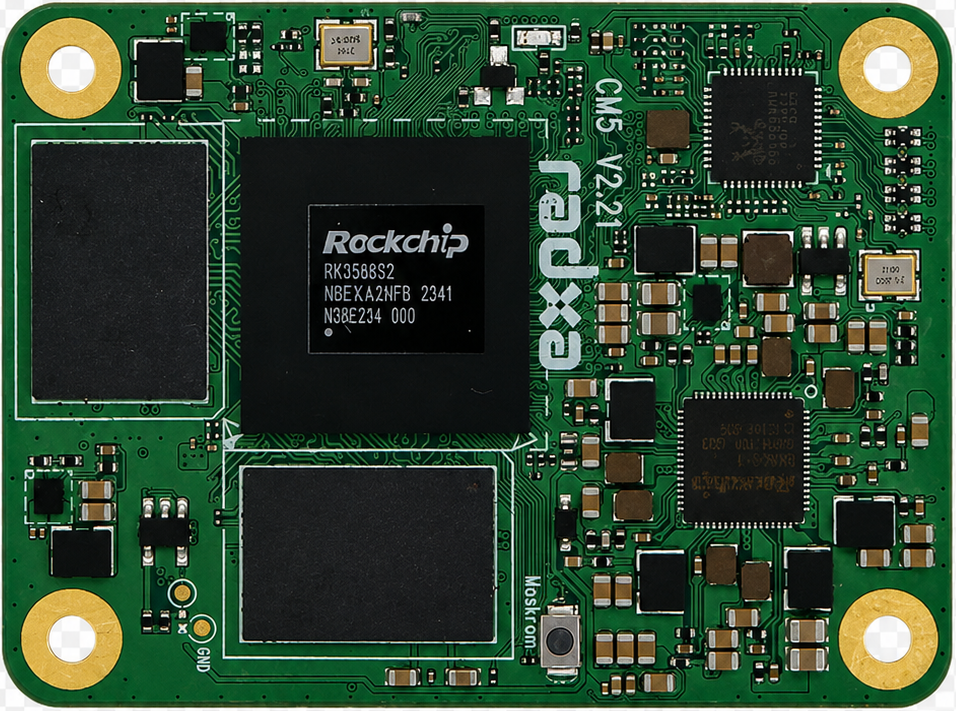

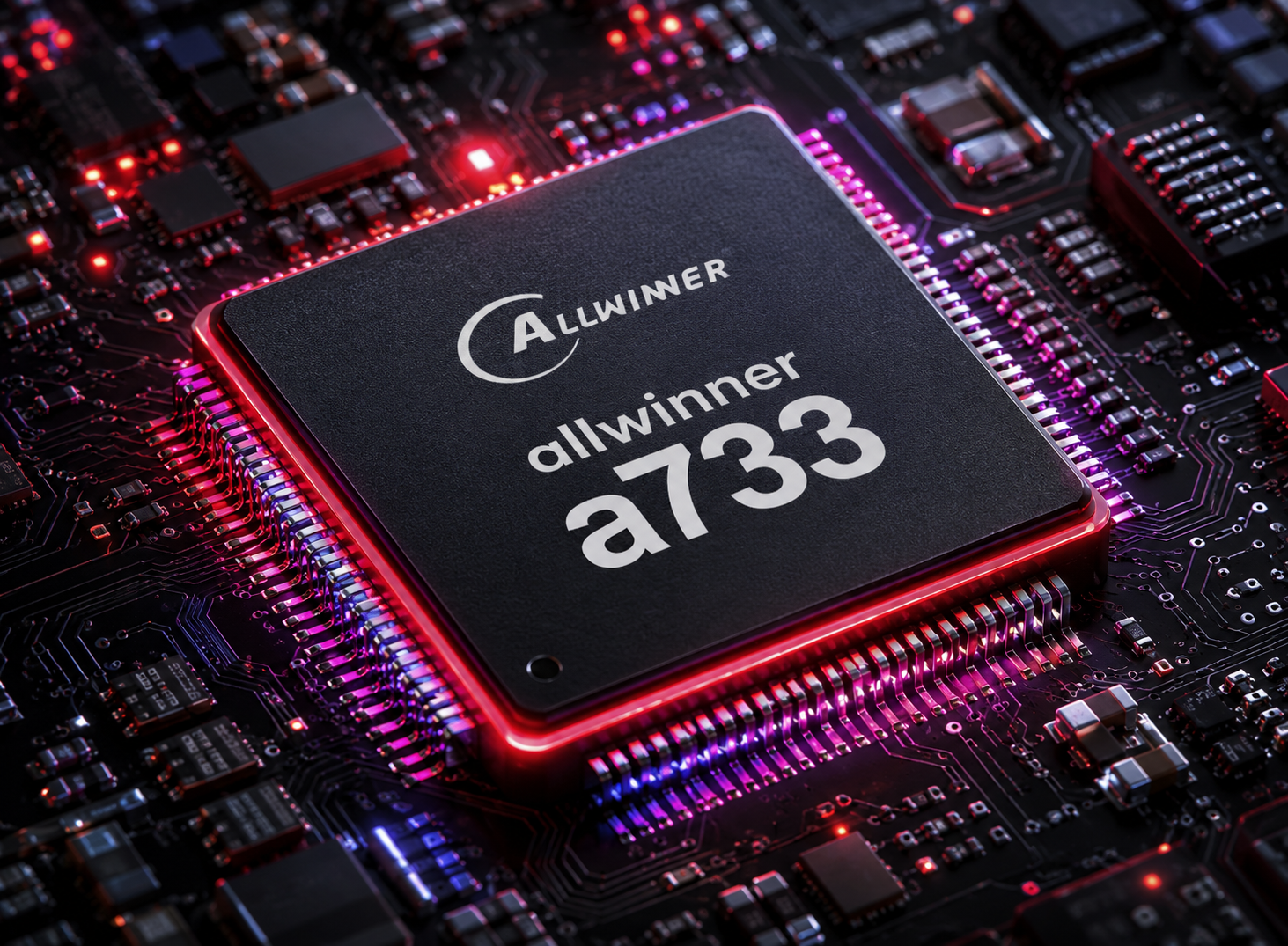

Radxa CM5
Rockchip RK3588s2
05 — FORM + FUNCTION
mobile by design.
desktop by nature.

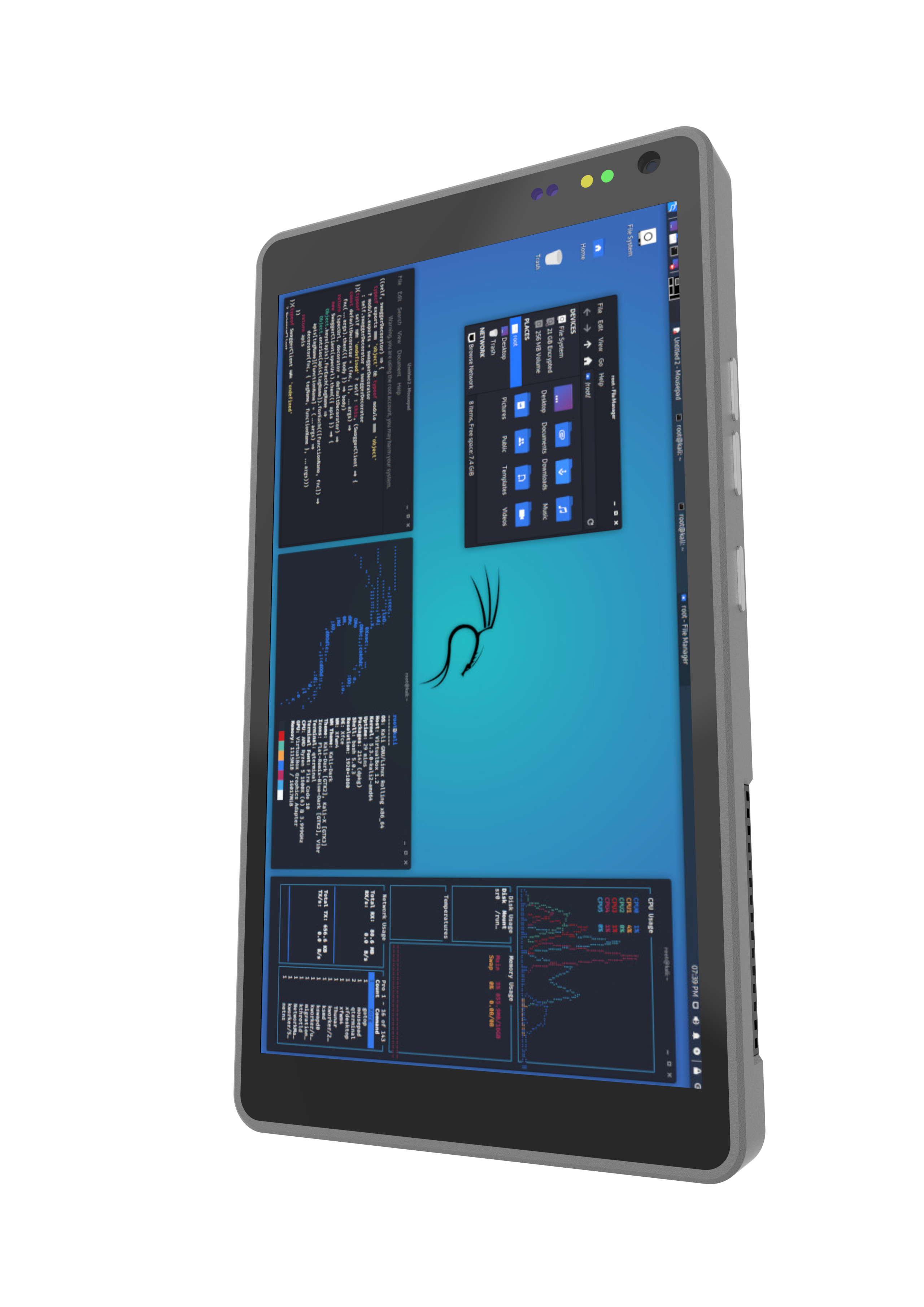

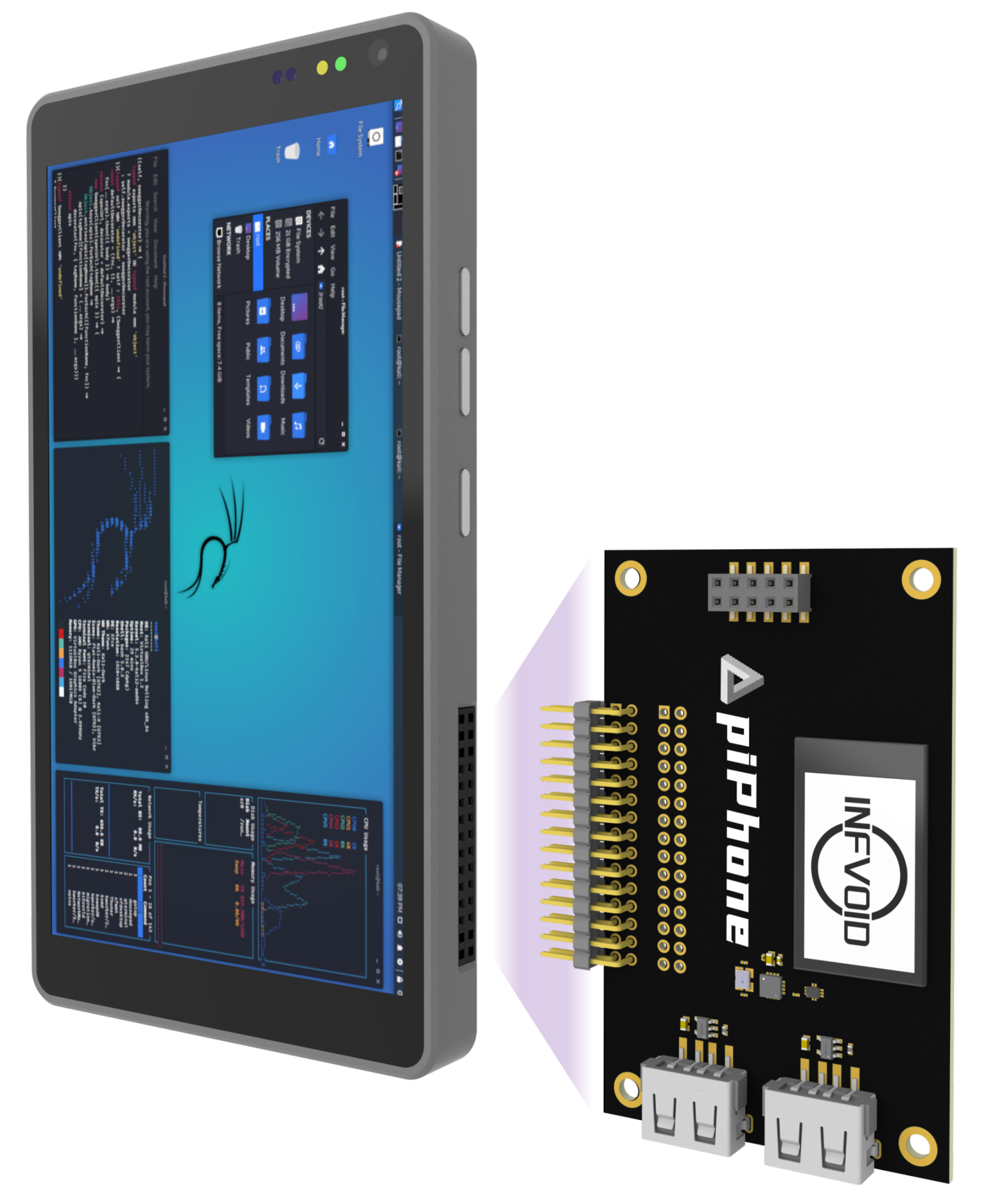

PhonePi brings a modular computing platform, flexible expansion, and an all-metal body together in a smartphone-sized device with a 7-inch touchscreen.
form factorsmartphone form factor with a 7-inch touchscreen
constructionfully CNC-machined with an anodized finish
dimensions158 × 86 × 14 mm
weight300 g
processor supportBroadcom BCM2712, Rockchip RK3588 / RK3572, and Qualcomm QCS6490
compute modulesmodular core interface with CM5 adapter support
wirelessdual-band Wi-Fi, Bluetooth, and optional 4G connectivity*
audiostereo speakers and a 3.5 mm headphone jack
expansion30-pin expansion connector and PCIe support for 4G, mSATA, and wireless modules
battery5000 mAh lithium battery
charging20 W wired fast charging
antennaintegrated high-gain antenna
storagemicroSD / TF card slot
video outputMicro-HDMI
display7-inch IPS display, 1280 × 720
enclosuremodular all-metal enclosure with passive cooling
sensorsgyroscope, magnetometer, ambient light sensor, proximity sensor, and optional GPS*
operating systemssupport for multiple operating systems
* 4G connectivity and GPS are available through a baseband module.
built in public.
The images shown here are early product renders. Form, specifications, and details will evolve as PhonePi moves toward production.
04 — OPERATING SYSTEMS
robust software ecosystem.
flexible multi-system support.
PhonePi supports multiple operating systems across its modular compute platforms. Choose Android or an open Linux distribution to match development, desktop, mobile, and security workflows.
Android
Debian
Kali Linux
Raspberry Pi OS
Ubuntu
Available system images depend on the selected compute module, adapter configuration, and community support.
faq
when will phonepi be available?+
PhonePi is currently in active development. Join the newsletter and we’ll share prototype milestones, availability, and launch news.
what operating systems can it run?+
PhonePi is designed around the Raspberry Pi and Linux ecosystem. Final compatibility details will be published with the production hardware.
is phonepi open source?+
Open hardware and open software are central to the project. Design files and documentation will be released as each part reaches a stable state.
how can I follow the project?+
Join the newsletter below for the most important development updates from infvoid.
